btSortedOverlappingPairCache maintains the objects with overlapping AABB Typically managed by the Broadphase, Axis3Sweep or btSimpleBroadphase More...

#include <btOverlappingPairCache.h>

Inheritance diagram for btSortedOverlappingPairCache:

[legend]

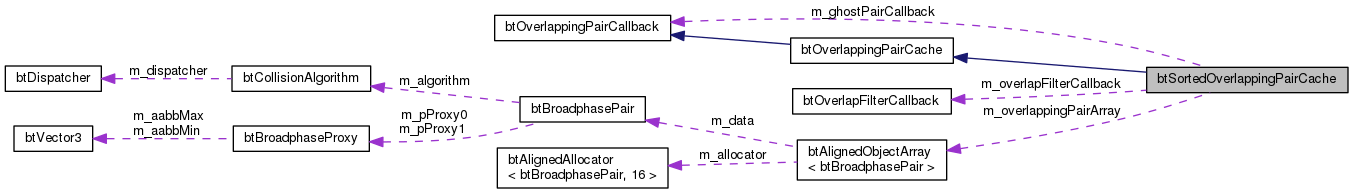

Collaboration diagram for btSortedOverlappingPairCache:

[legend]

Public Member Functions
	btSortedOverlappingPairCache ()

virtual	~btSortedOverlappingPairCache ()

virtual void	processAllOverlappingPairs (btOverlapCallback , btDispatcher dispatcher)

void *	removeOverlappingPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1, btDispatcher *dispatcher)

void	cleanOverlappingPair (btBroadphasePair &pair, btDispatcher *dispatcher)

btBroadphasePair *	addOverlappingPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1)

btBroadphasePair *	findPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1)
	this findPair becomes really slow. More...

void	cleanProxyFromPairs (btBroadphaseProxy proxy, btDispatcher dispatcher)

void	removeOverlappingPairsContainingProxy (btBroadphaseProxy proxy, btDispatcher dispatcher)

bool	needsBroadphaseCollision (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1) const

btBroadphasePairArray &	getOverlappingPairArray ()

const btBroadphasePairArray &	getOverlappingPairArray () const

btBroadphasePair *	getOverlappingPairArrayPtr ()

const btBroadphasePair *	getOverlappingPairArrayPtr () const

int	getNumOverlappingPairs () const

btOverlapFilterCallback *	getOverlapFilterCallback ()

void	setOverlapFilterCallback (btOverlapFilterCallback *callback)

virtual bool	hasDeferredRemoval ()

virtual void	setInternalGhostPairCallback (btOverlappingPairCallback *ghostPairCallback)

virtual void	sortOverlappingPairs (btDispatcher *dispatcher)

Public Member Functions inherited from btOverlappingPairCache
virtual	~btOverlappingPairCache ()

virtual void	processAllOverlappingPairs (btOverlapCallback callback, btDispatcher dispatcher, const struct btDispatcherInfo &dispatchInfo)

Public Member Functions inherited from btOverlappingPairCallback
virtual	~btOverlappingPairCallback ()

Protected Attributes
btBroadphasePairArray	m_overlappingPairArray

bool	m_blockedForChanges

bool	m_hasDeferredRemoval
	by default, do the removal during the pair traversal More...

btOverlapFilterCallback *	m_overlapFilterCallback

btOverlappingPairCallback *	m_ghostPairCallback

Additional Inherited Members
Protected Member Functions inherited from btOverlappingPairCallback
	btOverlappingPairCallback ()

Detailed Description

btSortedOverlappingPairCache maintains the objects with overlapping AABB Typically managed by the Broadphase, Axis3Sweep or btSimpleBroadphase

Definition at line 281 of file btOverlappingPairCache.h.

Constructor & Destructor Documentation

btSortedOverlappingPairCache::btSortedOverlappingPairCache ( )

Definition at line 590 of file btOverlappingPairCache.cpp.

btSortedOverlappingPairCache::~btSortedOverlappingPairCache ( )

virtual

Definition at line 600 of file btOverlappingPairCache.cpp.

Member Function Documentation

btBroadphasePair * btSortedOverlappingPairCache::addOverlappingPair	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1
	)

virtual

Implements btOverlappingPairCallback.

Definition at line 515 of file btOverlappingPairCache.cpp.

void btSortedOverlappingPairCache::cleanOverlappingPair	(	btBroadphasePair &	pair,
		btDispatcher *	dispatcher
	)

virtual

Implements btOverlappingPairCache.

Definition at line 604 of file btOverlappingPairCache.cpp.

void btSortedOverlappingPairCache::cleanProxyFromPairs	(	btBroadphaseProxy *	proxy,
		btDispatcher *	dispatcher
	)

virtual

Implements btOverlappingPairCache.

Definition at line 617 of file btOverlappingPairCache.cpp.

btBroadphasePair * btSortedOverlappingPairCache::findPair	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1
	)

virtual

this findPair becomes really slow.

Either sort the list to speedup the query, or use a different solution. It is mainly used for Removing overlapping pairs. Removal could be delayed. we could keep a linked list in each proxy, and store pair in one of the proxies (with lowest memory address) Also we can use a 2D bitmap, which can be useful for a future GPU implementation

Implements btOverlappingPairCache.

Definition at line 536 of file btOverlappingPairCache.cpp.

int btSortedOverlappingPairCache::getNumOverlappingPairs ( ) const

inlinevirtual

Implements btOverlappingPairCache.

Definition at line 353 of file btOverlappingPairCache.h.

btOverlapFilterCallback* btSortedOverlappingPairCache::getOverlapFilterCallback ( )

inline

Definition at line 358 of file btOverlappingPairCache.h.

btBroadphasePairArray& btSortedOverlappingPairCache::getOverlappingPairArray ( )

inlinevirtual

Implements btOverlappingPairCache.
