SimulationIslandManagerMt – Multithread capable version of SimulationIslandManager Splits the world up into islands which can be solved in parallel. More...

#include <btSimulationIslandManagerMt.h>

Inheritance diagram for btSimulationIslandManagerMt:

[legend]

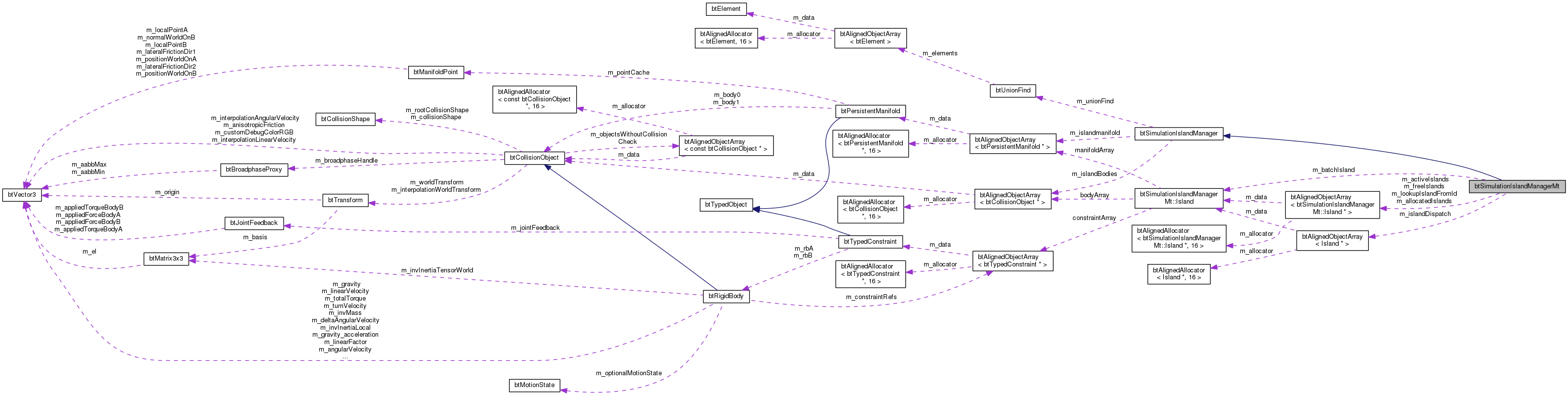

Collaboration diagram for btSimulationIslandManagerMt:

[legend]

Classes
struct	Island

struct	SolverParams

Public Types
typedef void(*	IslandDispatchFunc) (btAlignedObjectArray< Island * > *islands, const SolverParams &solverParams)

Public Member Functions
	btSimulationIslandManagerMt ()

virtual	~btSimulationIslandManagerMt ()

virtual void	buildAndProcessIslands (btDispatcher dispatcher, btCollisionWorld collisionWorld, btAlignedObjectArray< btTypedConstraint * > &constraints, const SolverParams &solverParams)

virtual void	buildIslands (btDispatcher dispatcher, btCollisionWorld colWorld)

int	getMinimumSolverBatchSize () const

void	setMinimumSolverBatchSize (int sz)

IslandDispatchFunc	getIslandDispatchFunction () const

void	setIslandDispatchFunction (IslandDispatchFunc func)

Public Member Functions inherited from btSimulationIslandManager
	btSimulationIslandManager ()

virtual	~btSimulationIslandManager ()

void	initUnionFind (int n)

btUnionFind &	getUnionFind ()

virtual void	updateActivationState (btCollisionWorld colWorld, btDispatcher dispatcher)

virtual void	storeIslandActivationState (btCollisionWorld *world)

void	findUnions (btDispatcher dispatcher, btCollisionWorld colWorld)

void	buildAndProcessIslands (btDispatcher dispatcher, btCollisionWorld collisionWorld, IslandCallback *callback)

void	buildIslands (btDispatcher dispatcher, btCollisionWorld colWorld)

bool	getSplitIslands ()

void	setSplitIslands (bool doSplitIslands)

Static Public Member Functions
static void	solveIsland (btConstraintSolver *solver, Island &island, const SolverParams &solverParams)

static void	serialIslandDispatch (btAlignedObjectArray< Island * > *islandsPtr, const SolverParams &solverParams)

static void	parallelIslandDispatch (btAlignedObjectArray< Island * > *islandsPtr, const SolverParams &solverParams)

Protected Member Functions
Island *	getIsland (int id)

virtual Island *	allocateIsland (int id, int numBodies)

virtual void	initIslandPools ()

virtual void	addBodiesToIslands (btCollisionWorld *collisionWorld)

virtual void	addManifoldsToIslands (btDispatcher *dispatcher)

virtual void	addConstraintsToIslands (btAlignedObjectArray< btTypedConstraint * > &constraints)

virtual void	mergeIslands ()

Protected Attributes
btAlignedObjectArray< Island * >	m_allocatedIslands

btAlignedObjectArray< Island * >	m_activeIslands

btAlignedObjectArray< Island * >	m_freeIslands

btAlignedObjectArray< Island * >	m_lookupIslandFromId

Island *	m_batchIsland

int	m_minimumSolverBatchSize

int	m_batchIslandMinBodyCount

IslandDispatchFunc	m_islandDispatch

Detailed Description

SimulationIslandManagerMt – Multithread capable version of SimulationIslandManager Splits the world up into islands which can be solved in parallel.

In order to solve islands in parallel, an IslandDispatch function must be provided which will dispatch calls to multiple threads. The amount of parallelism that can be achieved depends on the number of islands. If only a single island exists, then no parallelism is possible.

Definition at line 35 of file btSimulationIslandManagerMt.h.

Member Typedef Documentation

typedef void( * btSimulationIslandManagerMt::IslandDispatchFunc) (btAlignedObjectArray< Island * > *islands, const SolverParams &solverParams)

Definition at line 60 of file btSimulationIslandManagerMt.h.

Constructor & Destructor Documentation

btSimulationIslandManagerMt::btSimulationIslandManagerMt ( )

Definition at line 45 of file btSimulationIslandManagerMt.cpp.

btSimulationIslandManagerMt::~btSimulationIslandManagerMt ( )

virtual

Definition at line 54 of file btSimulationIslandManagerMt.cpp.

Member Function Documentation

void btSimulationIslandManagerMt::addBodiesToIslands ( btCollisionWorld * collisionWorld )

protectedvirtual

Definition at line 376 of file btSimulationIslandManagerMt.cpp.

void btSimulationIslandManagerMt::addConstraintsToIslands ( btAlignedObjectArray< btTypedConstraint * > & constraints )

protectedvirtual

Definition at line 466 of file btSimulationIslandManagerMt.cpp.

void btSimulationIslandManagerMt::addManifoldsToIslands ( btDispatcher * dispatcher )

protectedvirtual

Definition at line 423 of file btSimulationIslandManagerMt.cpp.

btSimulationIslandManagerMt::Island * btSimulationIslandManagerMt::allocateIsland	(	int	id,
		int	numBodies
	)

protectedvirtual

Definition at line 204 of file btSimulationIslandManagerMt.cpp.

void btSimulationIslandManagerMt::buildAndProcessIslands	(	btDispatcher *	dispatcher,
		btCollisionWorld *	collisionWorld,
		btAlignedObjectArray< btTypedConstraint * > &	constraints,
		const SolverParams &	solverParams
	)
